Tuxedo TP12KC-D

Description

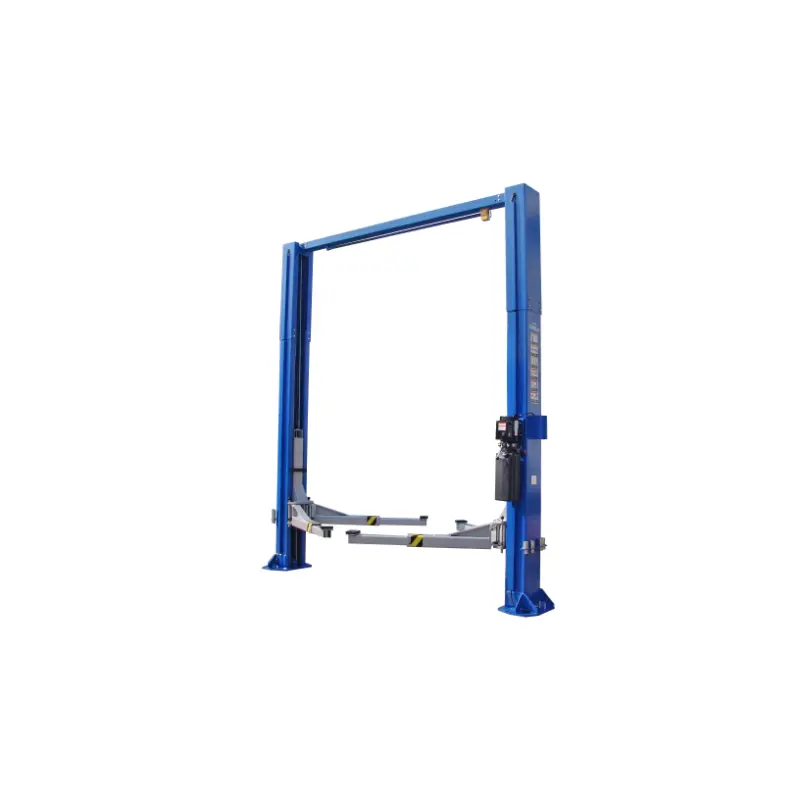

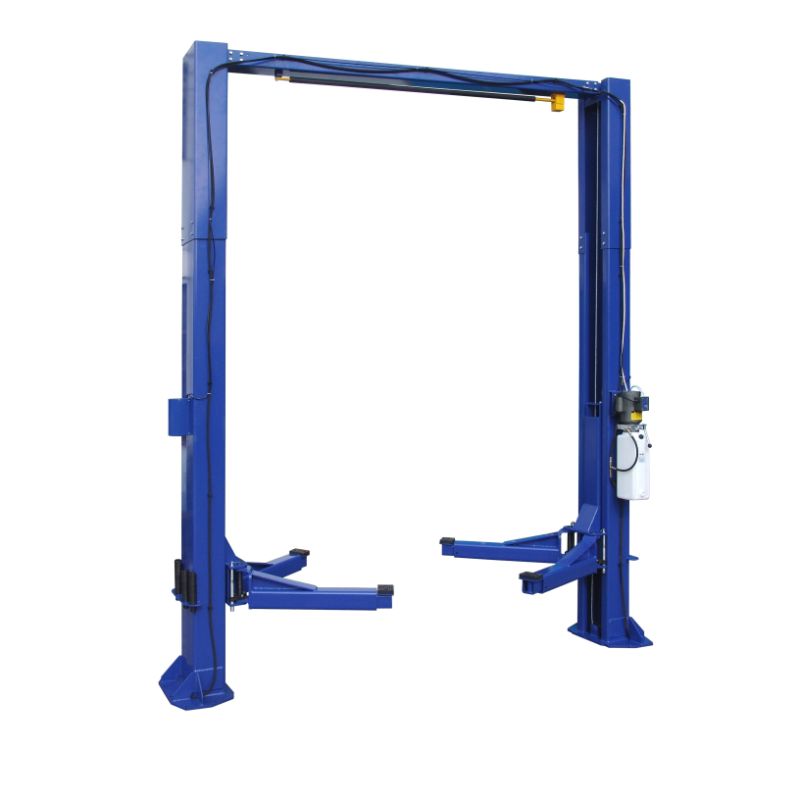

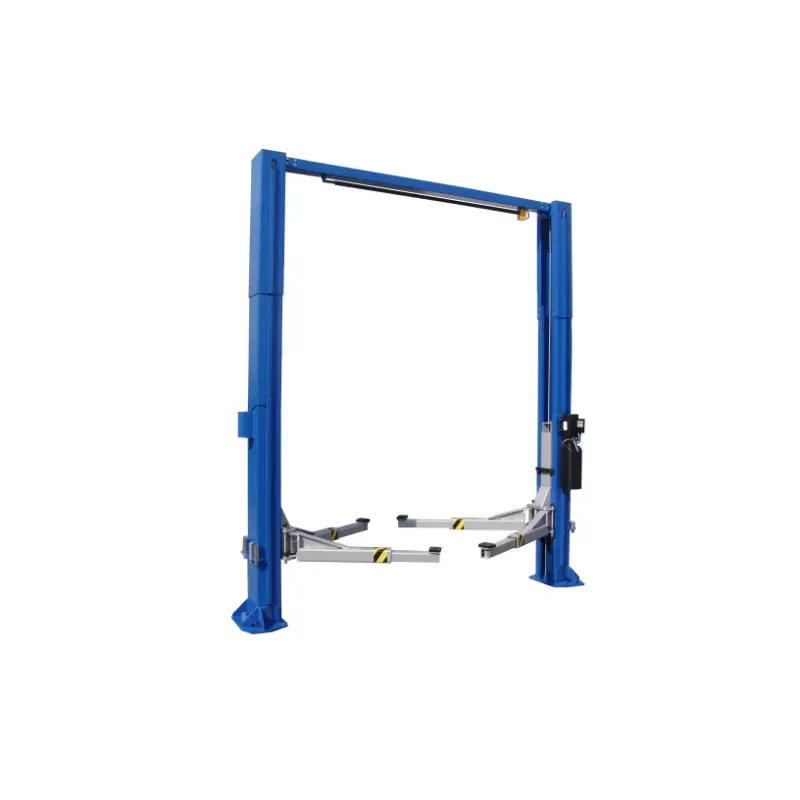

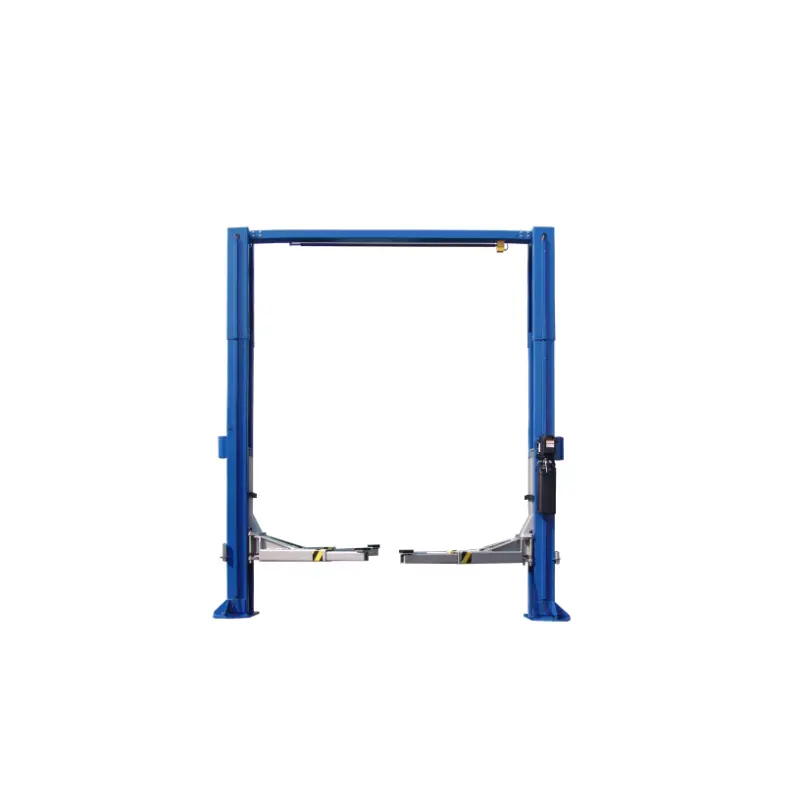

Tuxedo TP12KC-D Heavy-duty hoist 12,000 lb Car Hoist.

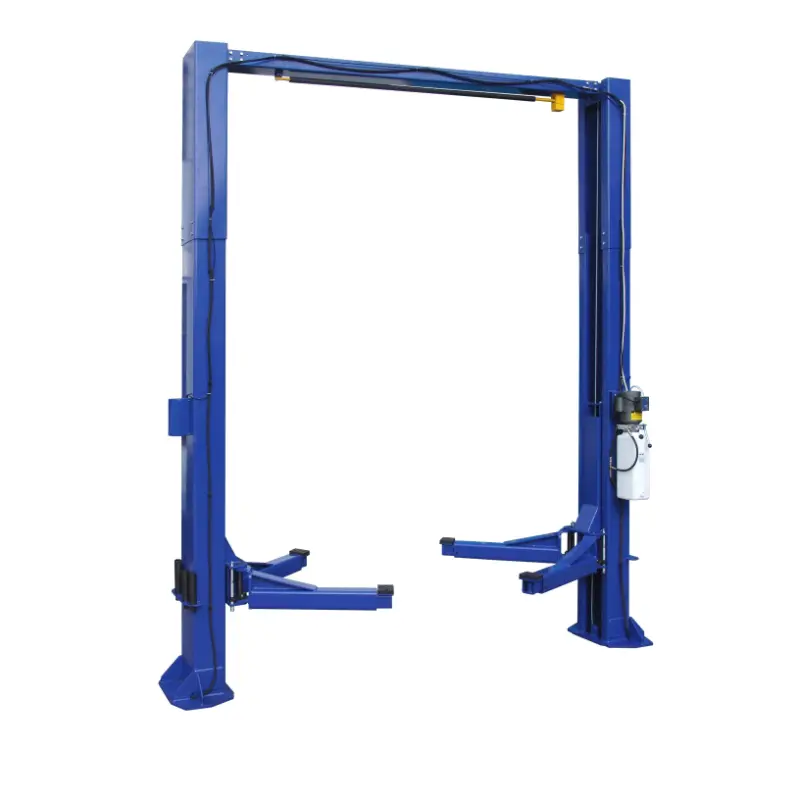

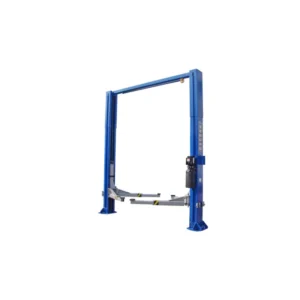

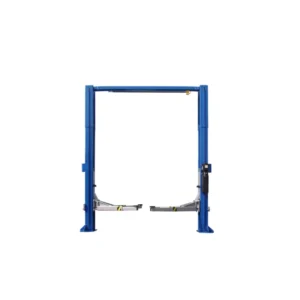

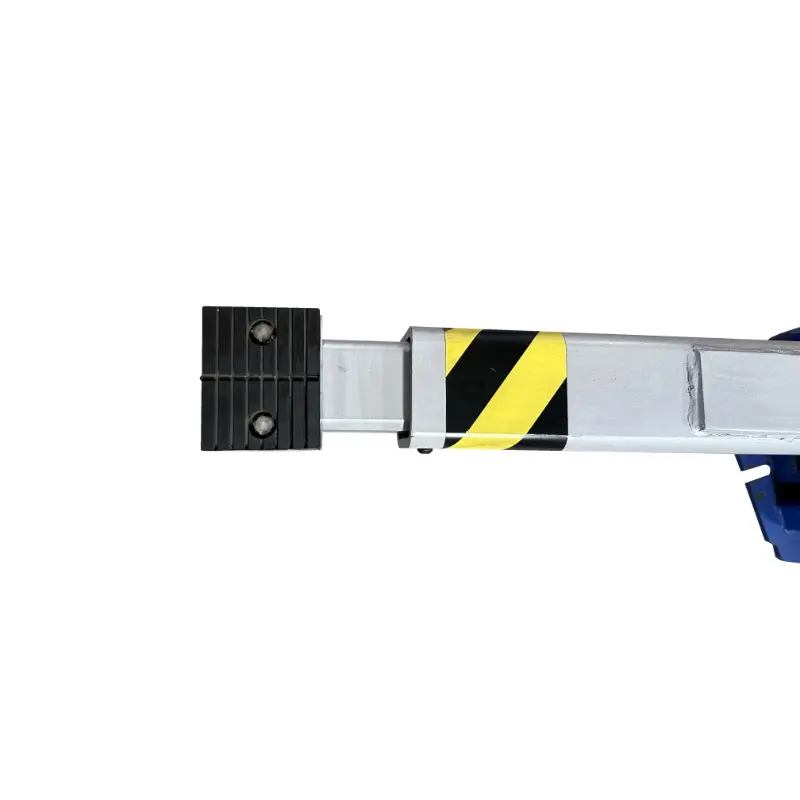

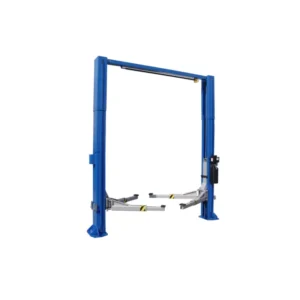

The Tuxedo TP12KC-D is built for the big job, big equipment, or big trucks. This clear floor truck lift has telescoping lift arms that extend between 37 5/8″ to 56 3/4″.

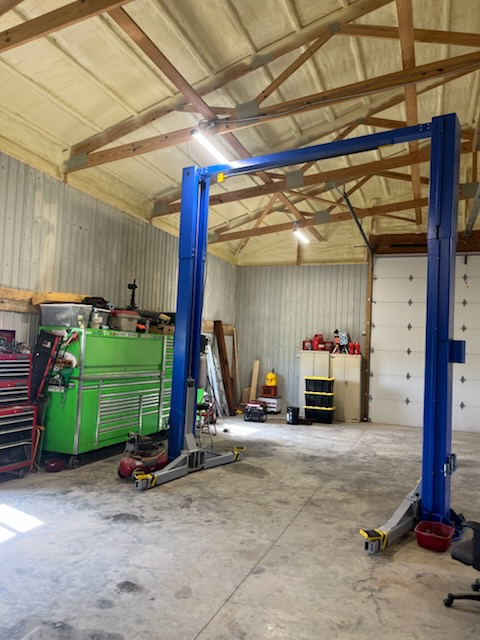

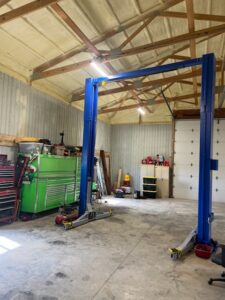

With an impressive overall height of 165″, this two post lift can be installed in a shop with 14′ or taller ceilings.  The 12KC-D hoist has a vehicle lift height of 76 1/2″, making it ideal for trucks and vans.  The clear floor design allows an unobstructed floor for transmission stands or under carriage stands.

The Tuxedo 12KC-D hoist includes a great 5 year warranty on structure and 1 year on electrical components.

Features:

• Capacity 12,000 lbs.

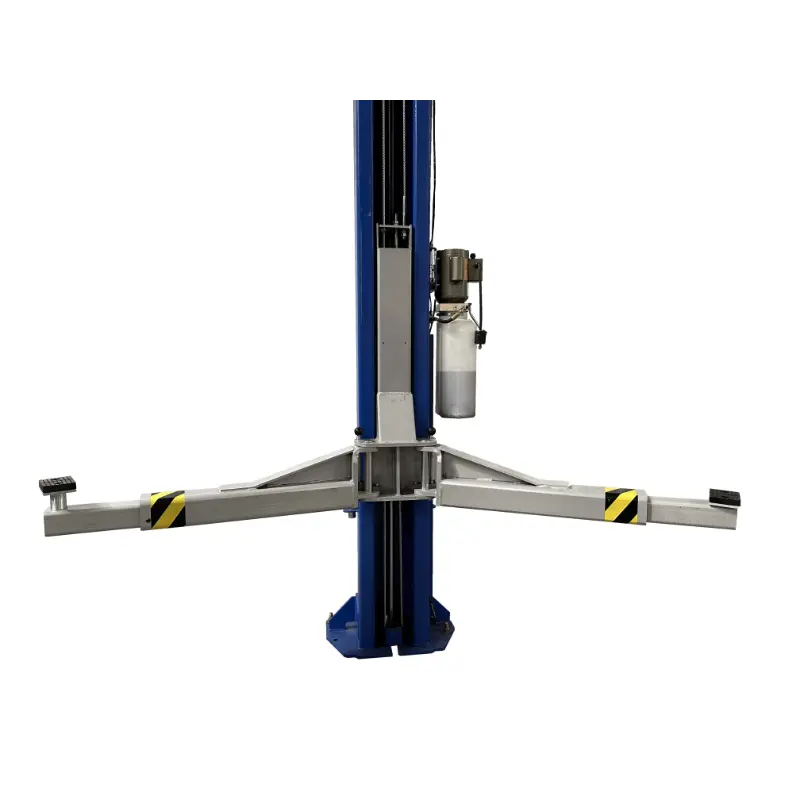

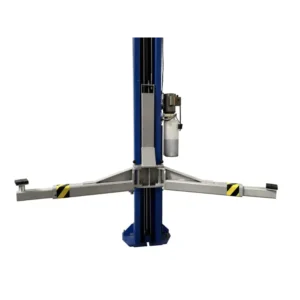

• Symmetric Arms

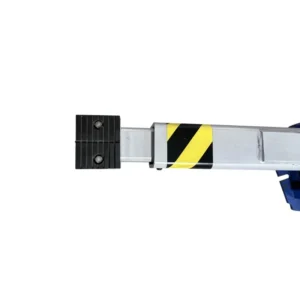

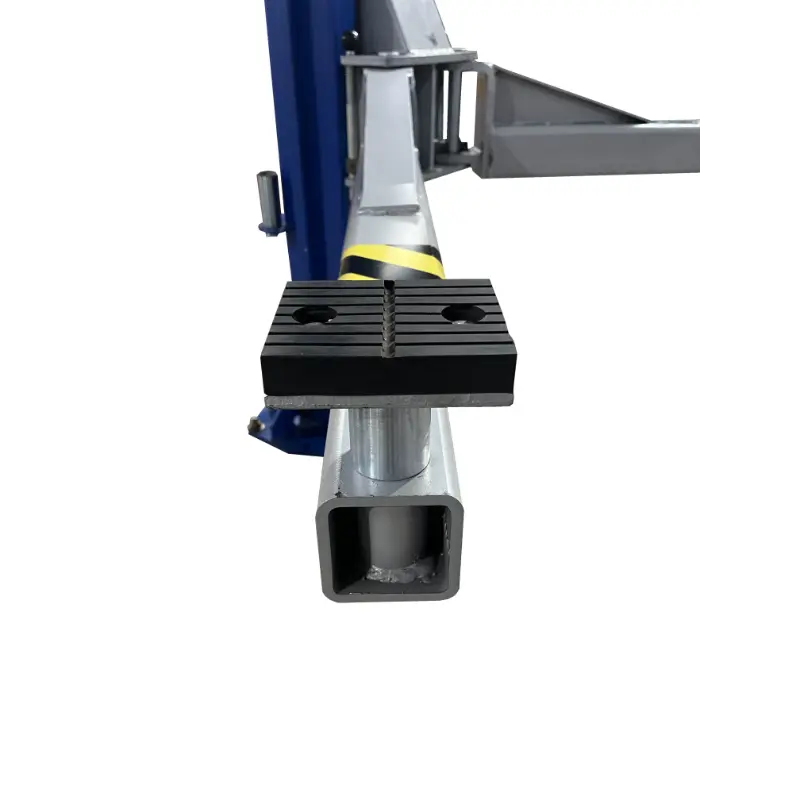

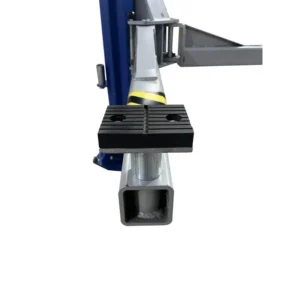

• Low Profile Swing Arm at minimum pad height of just 4 7/8″
• 122″ inches between columns

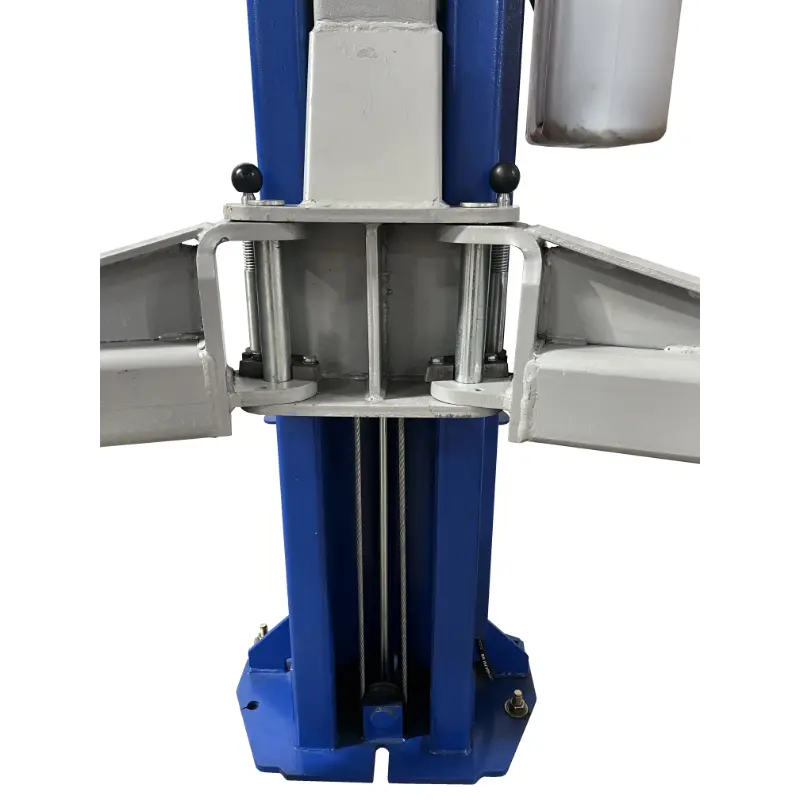

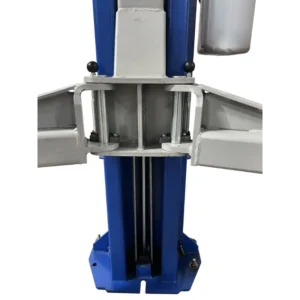

• Single Point Pneumatic Cable Lock Release

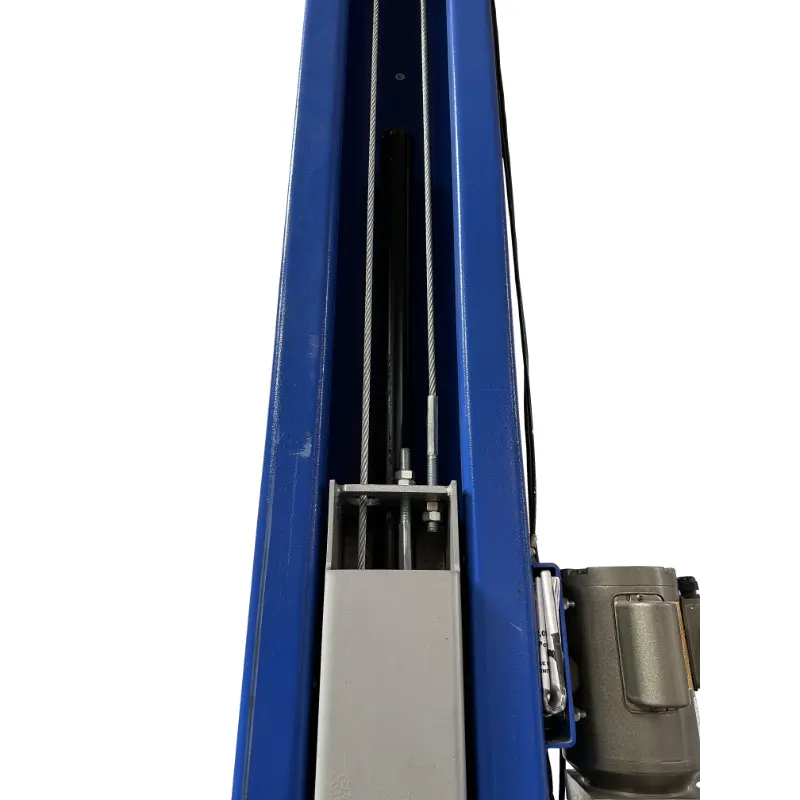

• Direct Push Drive Cylinders
• Rubber Door Guards
• Padded Overhead Control Shut Off Bar

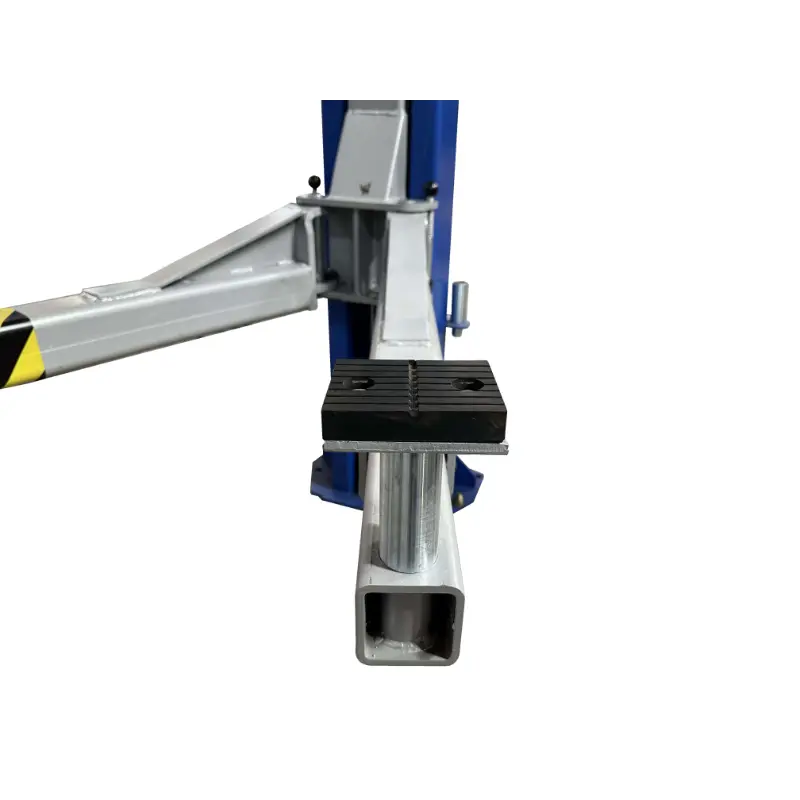

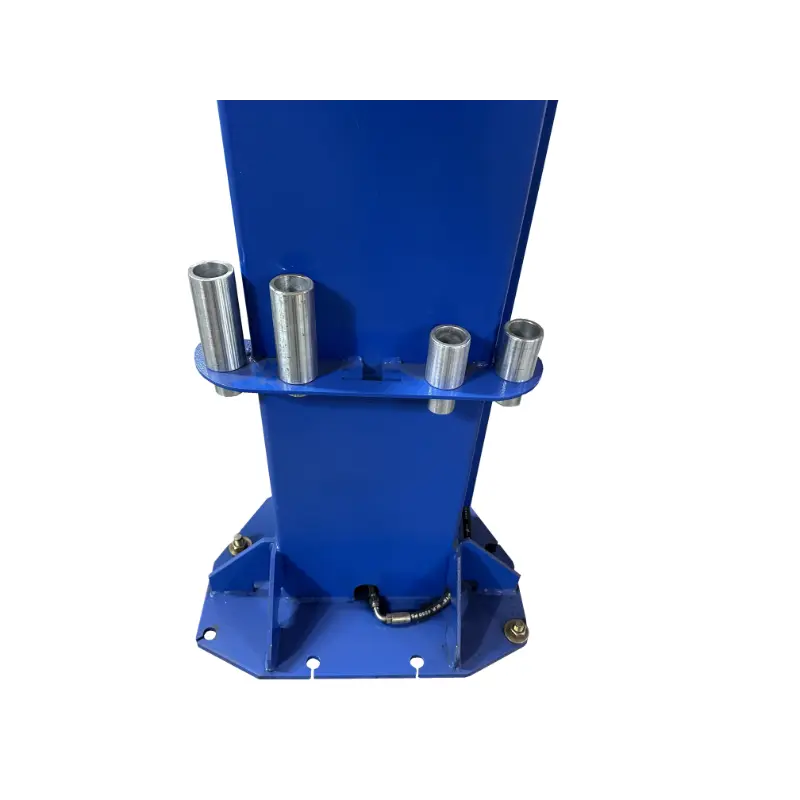

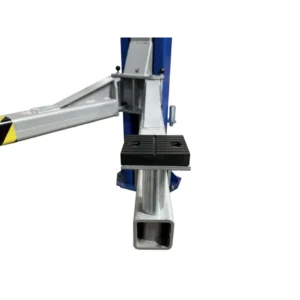

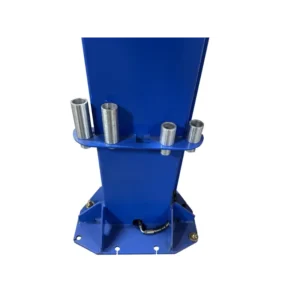

• Drop In Height Adapters are Standard
• Heavy Gusseted Base Plates Ensure Strength and Rigidness
• Manufacturer’s Limited Warranty:
  • Five Year Structural
  • One Year Parts

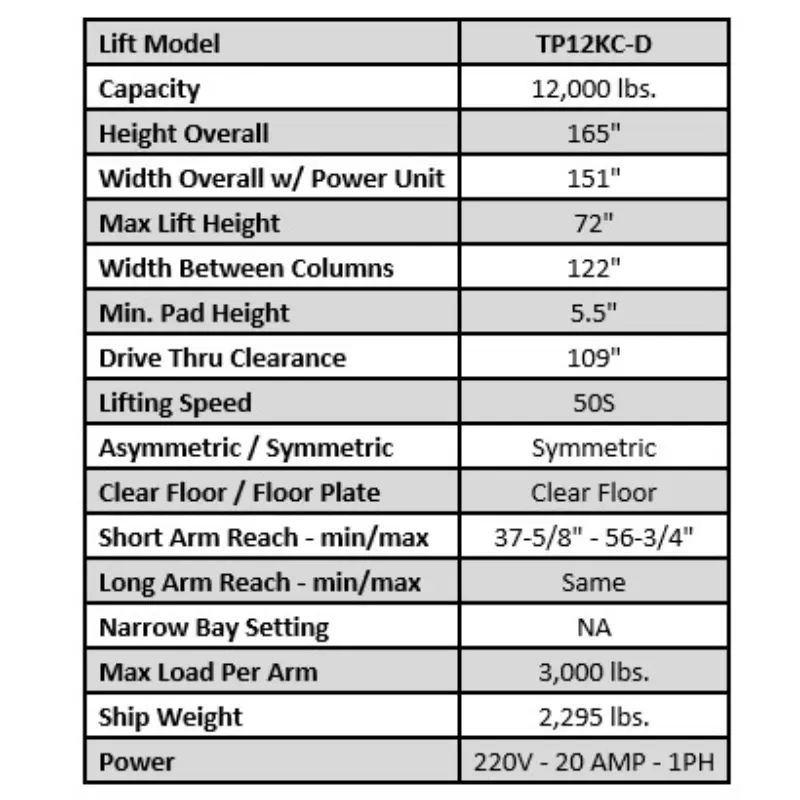

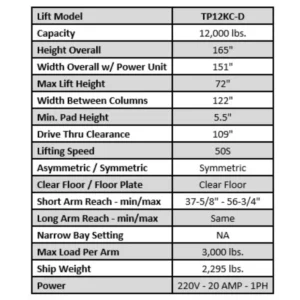

Specifications:

• Overall Height: 165″
• Width Between Columns: 122″
• Drive Thru Clearance: 109″
• Minimum Pad Height: 4 7/8″
• Arm Reach: 37 1/2″ – 57″

Installation:

• 4″ of 3,500 PSI Concrete
• Concrete must be aged a Minimum of 30 Days
• No Cracks within 12-16″ of the base plates of the post
• 220V 20Amp Hydraulic Power Unit
• Shop air required for pneumatic lock release

The Tuxedo Advantage:

Tuxedo Distributors is a leading importer of quality automotive equipment. They started in 2004 with a strategic alliance with Kernel International Trading Co. With well over $20 Million produced annually, Kernel has a long history of quality and dependable products.

Alvarado, Texas serves as the master warehouse with 80,000 square feet. They keep nearly every part in stock. With multiple service and support agents available, we can have any parts ordered and shipped within one day.  That keeps your equipment operational when you need it most!
