AMGO 409-DPX

Original price was: $8,455.00.Current price is: $7,450.00.

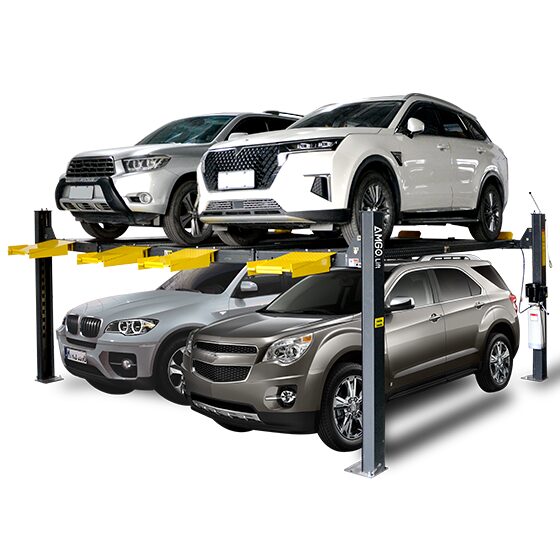

AMGO 409-DPX – Double Wide Storage Parking Lift with 9,000 lbs of capacity. Designed to park two cars on top and two cars bellow. Excellent design and value!  Be sure to review the list of accessory items before checking out.

SKU: 409-DPX Category: Tags: , ,

Description

AMGO 409‑DPX Double Wide Storage Parking Lift – 9,000 lb Capacity, Extra Length & Height


Maximize your storage and flexibility with the AMGO 409‑DPX Double Wide Storage Parking Lift. Designed for taller vehicles like SUVs and light trucks, this extended-width, high-clearance lift delivers a robust 9,000 lb total lifting capacity. With space-saving features and professional-grade safety, it offers an ideal solution for both residential garages and commercial shops.


Features & Benefits

  • Heavy-Duty Capacity – Lifts up to 9,000 lb total, accommodating up to 6,000 lb per vehicle with ease.

  • Extended Height – Reaches a maximum lifting height of 87 11/16″, ensuring sufficient clearance under most tall vehicles.

  • Low-Profile Design – Minimal platform height of just 6 1/8″ allows low-clearance loading.

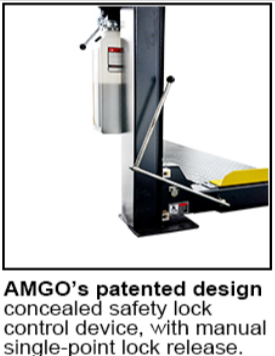

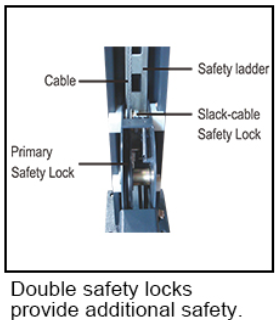

  • Enhanced Safety Systems – Comes standard with primary safety locks, cable-slack protection, and a concealed manual single-point lock release.

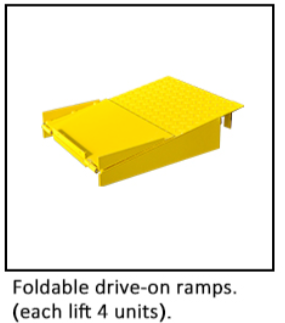

  • Convenient Four Foldable Ramps – Integrated ramps fold neatly for compact storage and convenient drive-on access.

  • Durable Double S-Shaped Columns – Reinforced structure provides added stability and strength.

  • Non-Slip Diamond Platforms – Ensures secure, slip-resistant vehicle positioning.

  • Adjustable Safety Ladders & Pull Rope – Offers convenient access to elevated storage levels.

  • Efficient Packaging Design – Compact design reduces shipping volume and storage footprint.

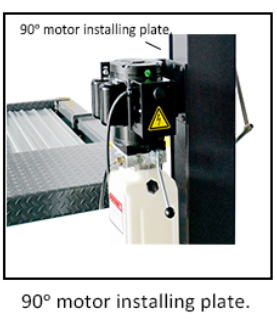

  • Flexible Power Options – Compatible with either 110V or 220V power units (must be specified when ordering).

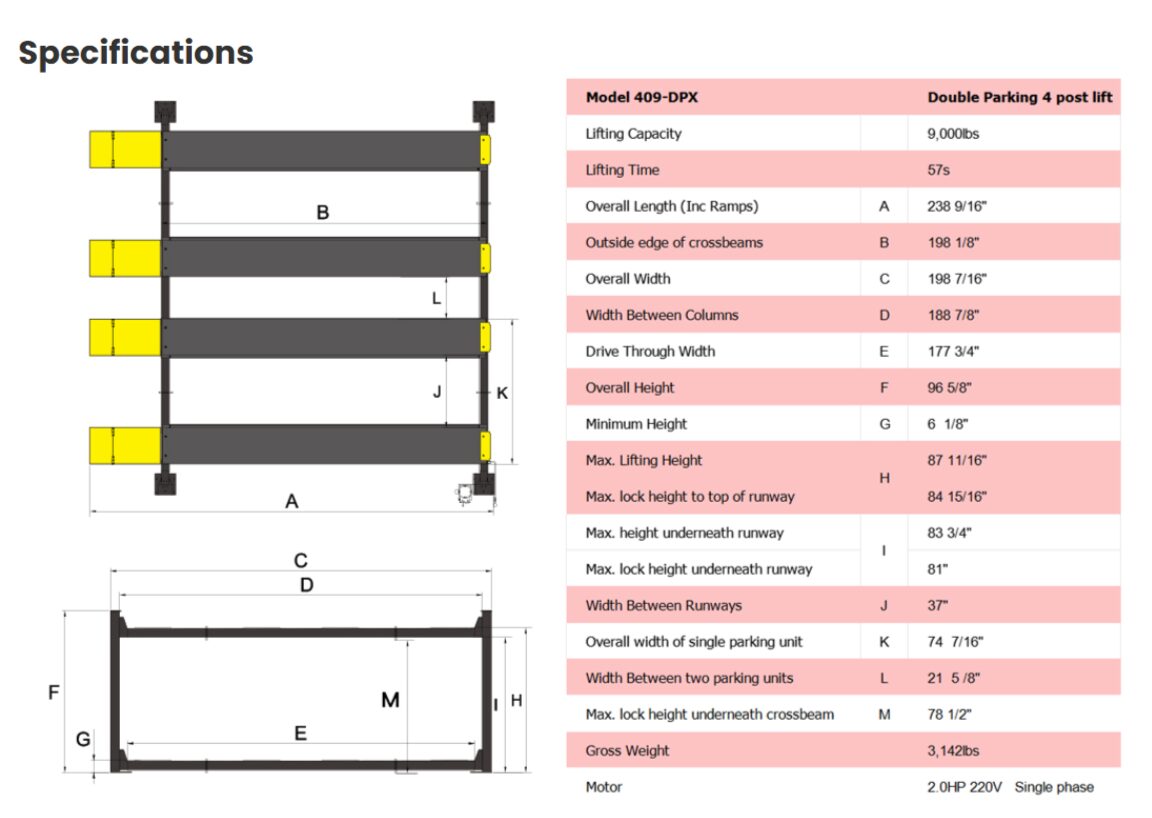

Technical Specifications

Specification Detail
Lift Capacity 9,000 lb (max 6,000 lb per vehicle)
Max Lift Height 87 11/16″
Minimum Platform Height 6 1/8″
Overall Length (w/ Ramps) ~238 9/16″
Overall Width ~198 7/16″
Drive-Through Clearance ~177 3/4″
Overall Height ~96 5/8″
Lifting Time ~57 seconds (with 2.0 HP, 220V)
Width Between Columns ~188 7/8″
Platforms Width 37″

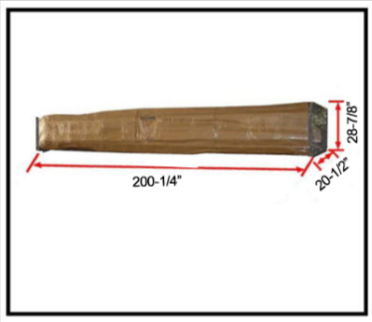

Shipping Weight ~3,142 lb

Frequently Asked Questions (FAQs)

  1. Can this lift handle larger SUVs and light trucks?
    Absolutely—it supports up to 9,000 lb total, with each side capable of lifting up to 6,000 lb.

  2. Is it suitable for low-clearance vehicle loading?
    Yes. The low-profile design starts at only 6 1/8″ off the floor, making it easy to drive vehicles on.

  3. Is the lift safe and easy to operate?
    Yes—enhanced safety features include dual safety locks, cable protection, and a user-friendly single-point release.

  4. Will it maximize my garage space?
    Definitely. The double-deck design stores two vehicles in a single footprint, freeing valuable floor area.

  5. What power options are available?
    Choose between 110V or 220V power units depending on your shop’s electrical capacity.


Why Shop Tools Outlet?

At Shop Tools Outlet, we match premium quality with fast shipping, competitive pricing, and expert support. Equip your garage with reliable solutions like the AMGO 409‑DPX for efficient, safe vehicle storage. Elevate your storage game with the AMGO 409‑DPX Double Wide Storage Parking Lift. Click “Add to Cart” now to secure versatile, space-saving vehicle storage with confidence.
