Amgo OH-15

Description

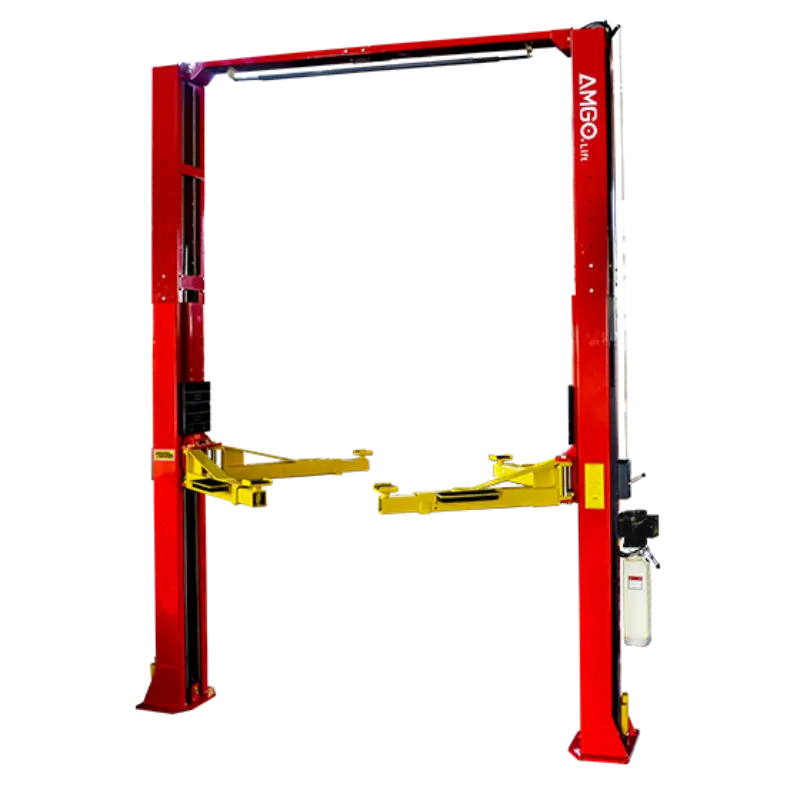

AMGO OH-15 Two-Post Lift | 15,000 lb. Capacity

The AMGO OH-15 delivers the power and performance you need for heavy-duty lifting. Built for commercial repair facilities, fleet garages, and professional service shops, this clear-floor two-post lift offers exceptional strength, overhead clearance, and flexibility. Its adjustable columns support high-ceiling installations, while the clear-floor design leaves your shop space open for undercarriage equipment.

If you need a rugged and reliable solution for lifting large vehicles, the OH-15 is an outstanding choice. This professional-grade lift is engineered for superior safety, strength, and service efficiency.

FEATURES:

• 15,000 lb. Capacity: Ideal for lifting light- and medium-duty trucks and large vehicles.

• Symmetric Arm Design: Provides balanced lifting for large vehicles and service trucks.

• Dual Direct-Drive Cylinders: Offers smooth and powerful lifting using aircraft-grade cables for synchronization.

• Overhead Safety Shut-Off: Prevents accidental vehicle roof contact with an automatic shutoff bar.

• Single Point Safety Lock Release: Allows easy unlocking of both columns from one side.

• Two-Piece Columns: Accommodates ceiling heights from 174″ to 198″, with added lift height from 74 ¼” to 85 ¼”.

• Rubber Door Guards: Protect vehicle doors during service.

• Low Profile Arms: 6 7/8″ low arm design allows access to low-clearance vehicles.

• Stackable Adapters Included: Comes with 3″ & 6″ adapters.

• Power Unit: 2.0HP, 220V Single Phase for reliable and consistent operation.

SPECIFICATIONS:

• Lift Capacity: 15,000 lbs.

• Column Height (Adjustable): 174″–198″

• Minimum Ceiling Height Required: 14.5′

• Overall Width: 150 3/4″

• Width Between Columns: 123 1/2″

• Drive-Thru Width: 109 3/4″

• Maximum Lift Height: 83 ¼” (with height extension)

• Minimum Pad Height: 4 ½”

• Power Unit: 2.0HP, 220V, Single Phase

INSTALLATION:

• Before installation, make sure the concrete slab is at least 5″ thick and rated at a minimum of 3,500 PSI (cured for at least 30 days). Avoid placing anchors near expansion joints. Additionally, you’ll need a ceiling height of at least 14.5′. To achieve maximum lifting height, consider using the included column extension options.

OPTIONS AVAILABLE:

• LED Light Kit: P/N 201001

• Saddle Adapters for SUVs and Trucks: P/N 21103

• Golf & Trike Cross Bar Accessory: P/N 20805

WHY CHOOSE AMGO?

AMGO Hydraulics sets the standard for quality, innovation, and reliability. Their products are manufactured using high-grade components such as self-lubricating UHMW polyethylene sliders, bronze bushings, and premium NOK seals. This attention to detail results in longer-lasting equipment that requires less maintenance over time.

Most importantly, the OH-15 is backed by one of the strongest warranties in the industry: 5 years structural, 3 years hydraulic, and 2 years electrical. This unmatched support gives you peace of mind and long-term value from your investment.
