AMGO PRO-12

Description

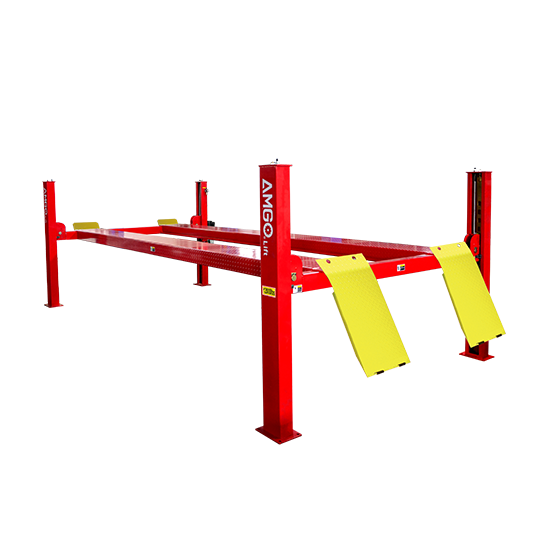

AMGO PRO-12 Four-Post Lift | 12,000 lb. Capacity

Shop owners choose the AMGO PRO-12 because it handles vehicles up to 12,000 lbs reliably every day. This four-post lift excels in commercial service bays. For example, it features a strong cable-driven system. Additionally, it includes air-released safety locks. These elements make operation smooth and safe.

You get a clear overhead span with no obstructions. As a result, technicians move freely underneath vehicles. Moreover, the skid-proof diamond plate runways provide excellent grip. The single-point safety lock release adds convenience. Therefore, you save time on busy days.

Optional rolling jacks expand your capabilities further. For instance, they allow easy brake and suspension work. Overall, the PRO-12 delivers outstanding performance. It suits high-volume garages perfectly. In addition, its heavy-duty build ensures long-lasting use.

FEATURES

• 12,000 lb. lifting capacity

• Mechanical self-locking safety system with air-driven lock release

• Aircraft-grade ½″ lifting cables with slack cable detection

• ETL-certified power unit for commercial reliability

• Skid-proof diamond plate runways with adjustable platform width

• Single-point lock release simplifies operation

• Durable red powder-coated finish

• Clear floor span between columns for unobstructed access

• Optional rolling jack compatibility (hand-pump or air-operated)

• Designed for daily service work in light commercial shops

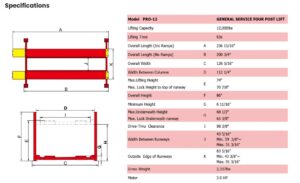

SPECIFICATIONS

• Lift Capacity: 12,000 lbs.

• Overall Length (with ramps): 236″

• Overall Width: 130″

• Width Between Columns: 112 ¼″

• Drive-Thru Width: 100 ¾″

• Runway Width: 20″

• Runway Length: 191 ½″

• Min. Pad Height: 7″

• Max. Lift Height: 73 ½″

• Power Unit: 2.0HP, 220V, Single Phase

• Gross Weight: 2,717 lbs.

INSTALLATION:

You need a solid foundation for safe installation. First, ensure your concrete slab measures at least 5″ thick. It must rate at least 3,500 PSI. Also, allow full curing for 30 days.

Next, avoid anchors near expansion joints. This prevents cracks over time. In addition, check your ceiling height. You require at least 9′ to fit the lift and a raised vehicle comfortably.

Finally, consider runway extensions for longer vehicles. These options provide extra clearance when necessary.

OPTIONS AVAILABLE

• Rolling Jack (Hand Pump): J6H

• Rolling Jack (Air Operated): J6A

• LED Light Kit: P/N 40103

• Airline Kit: P/N 40102A

• Runway Extensions: P/N 41203

Questions and Answers:

What lifting capacity does the AMGO PRO-12 offer?

The PRO-12 handles up to 12,000 lbs. This makes it perfect for passenger vehicles, SUVs, and light trucks in busy shops.

Which safety features protect users?

AMGO equips the lift with a mechanical self-locking system and air-driven single-point release. It also adds aircraft-grade cables with slack detection. Multiple lock positions ensure secure holds.

How much ceiling height do I need?

Plan for at least 9 feet. This accommodates the lift’s height plus a typical vehicle. Always measure your space and review the manual.

Does it run on single-phase power?

Yes, the 2.0HP ETL-certified unit uses 220V single-phase power. Most shops already have compatible setups.

Can I use this lift for alignments?

The standard PRO-12 works great for service and storage. However, choose the PRO-12A model for alignments—it includes turnplates and slip plates.

What warranty covers the PRO-12?

AMGO provides top coverage: 5 years on structural components, 3 years on hydraulics, and 2 years on electrical parts.

How do you ship and unload it?

Freight trucks deliver the lift. Its crated weight reaches about 2,717 lbs, so prepare a forklift or loading dock.

Do rolling jacks come included?

No, but you can add them easily. Popular options include the hand-pump J6H or air-operated J6A for extra tasks.

WHY CHOOSE AMGO?

AMGO® lifts are built with an uncompromising focus on quality, safety, and innovation. Their PRO-series lifts include high-performance features like UHMW polyethylene self-lubricating sliders, bronze bushings, NOK hydraulic seals, and industrial-grade powder coating to ensure long-term durability and low maintenance.

Every AMGO lift is backed by a best-in-class warranty: 5 years on structural components, 3 years on hydraulics, and 2 years on electrical parts—giving you the confidence you need in your shop equipment investment.
