AMGO PRO-12A

Description

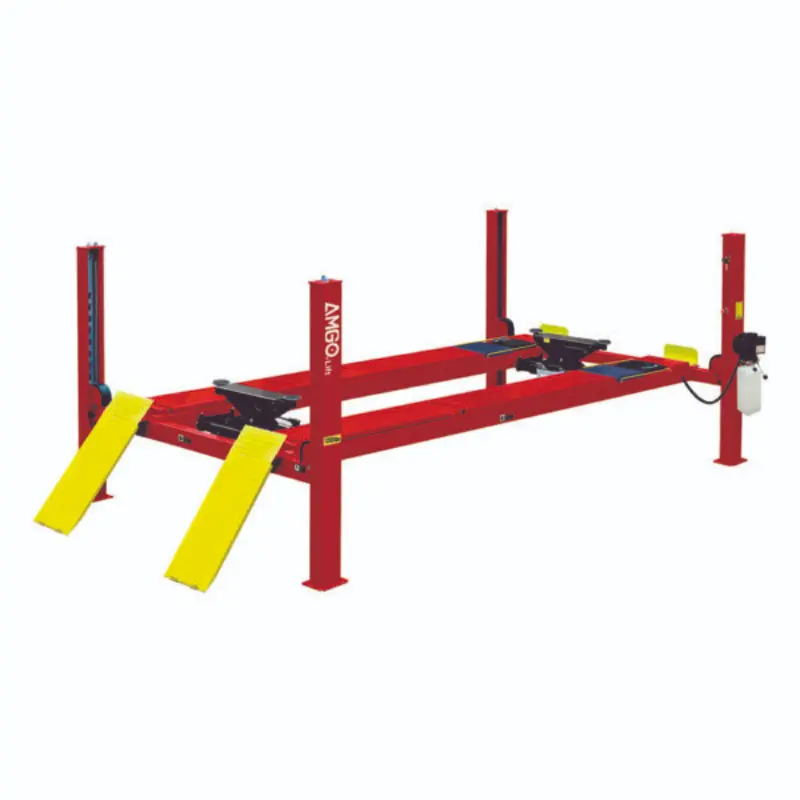

AMGO PRO-12A Four-Post Alignment Lift | 12,000 lb. Capacity

Shop technicians love the AMGO PRO-12A because it handles everyday vehicles up to 12,000 lbs with ease. This alignment-ready four-post lift shines in commercial bays. For example, it includes built-in rear slip plates. Additionally, adjustable turn plate pockets make wheel alignments precise and quick.

You gain a clear overhead span for easy access underneath. As a result, mechanics work efficiently on brakes, suspensions, or tires. Moreover, the air-released single-point safety locks ensure reliable operation. Therefore, you complete jobs faster in busy shops.

Optional rolling jacks and turn plates boost versatility further. For instance, they support full wheel service tasks. Overall, the PRO-12A combines strength and alignment features perfectly. In addition, its durable build supports daily heavy use.

FEATURES

• 12,000 lb. lifting capacity

• Four-post alignment lift design for stable drive-on service

• Adjustable front turn plate pockets for precise alignment setup

• Integrated rear slip plates for accurate wheel alignment

• Air-released single-point safety lock system

• Mechanical safety locks with cable break protection

• 1/2″ aircraft-grade lifting cables for durability and reliability

• Skid-proof diamond plate runways for secure vehicle positioning

• Clear overhead span for unobstructed workspace

• Durable red powder-coated finish for long-term corrosion resistance

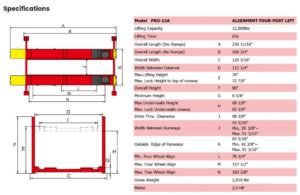

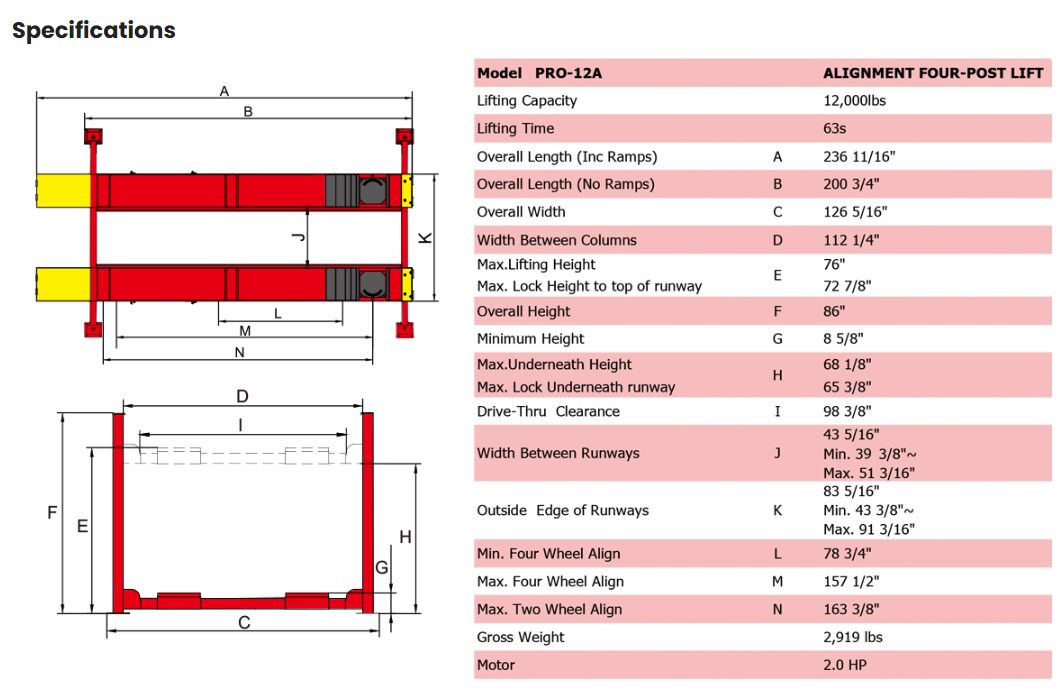

SPECIFICATIONS

• Lift Capacity: 12,000 lbs.

• Height: 86″

• Minimum Ceiling Height Required: 8′ + room for vehicle

• Overall Width: 126 5/16″″

• Width Between Columns: 112 1/4″

• Drive-Thru Width: 98 3/8″

• Maximum Lift Height: 76″

• Minimum Height: 8 5/8″

• Power Unit: 2.0HP, 220V, Single Phase

INSTALLATION:

You achieve safe setup by preparing properly. First, confirm your concrete slab reaches at least 5″ thickness. It needs a minimum 3,500 PSI rating. Also, let it cure fully for 30 days.

Next, position anchors away from expansion joints. This avoids future issues. In addition, ensure ceiling height exceeds 9′.

Finally, add runway extensions if you service longer wheelbases. These options provide needed flexibility.

OPTIONS AVAILABLE

• AMGO 40101 Turn Plates – Set of 2

• AMGO 40905 Turn Plate Blocks

• J6H Rolling Jack with Hand Pump

• J6A Rolling Jack with Air-Operated Pump

• LED Light Kit – P/N 40103

• Airline Kit – P/N 40102A

• Runway Extensions – P/N 41203

Frequently Asked Questions

What vehicles can the AMGO PRO-12A lift?
The PRO-12A can lift vehicles up to 12,000 lbs., making it suitable for cars, SUVs, and light-duty trucks commonly serviced in alignment and repair shops.

Is the PRO-12A designed for wheel alignments?
Yes. The lift is alignment-ready and includes adjustable turn plate pockets and integrated rear slip plates to support accurate four-wheel alignment procedures.

What power requirements does the PRO-12A have?
The PRO-12A uses a 2.0HP power unit that requires 220V, single-phase electrical service.

How does the safety lock system work?
The lift features mechanical safety locks with cable break protection and an air-released single-point lock system for fast, consistent operation.

What warranty comes with the AMGO PRO-12A?
AMGO backs the PRO-12A with a 5/3/2 warranty: 5 years on structure, 3 years on hydraulics, and 2 years on electrical components.

WHY CHOOSE AMGO?

AMGO Hydraulics is known for producing high-quality automotive lifts that balance performance, safety, and long-term value. Their equipment is engineered using premium components such as self-lubricating UHMW polyethylene sliders, bronze bushings, and NOK hydraulic seals, all designed to reduce maintenance while extending service life.

The PRO-12A is backed by AMGO’s industry-leading warranty, which includes 5 years on structural components, 3 years on hydraulic parts, and 2 years on electrical components. This level of coverage provides confidence and peace of mind for professional shops that depend on their equipment every day.
