Free Shipping!
KaTool KT-H100
$2,299.00
KaTool KT-H100 2 Post 10,000 lb. car lift. Includes super strength S Column design, symmetric lift arm carriage, 220V Power Unit, and height adapters.
Description
KaTool KT-H100 2 Post Car Lift: Compact Design with 10,000 lbs Capacity
The KaTool KT-H100 2 Post Car Lift is an ideal solution for professionals and DIYers looking for a compact and powerful vehicle lift. With a robust lifting capacity of 10,000 lbs, this CE-certified lift delivers reliability and strength for light-duty trucks, SUVs, and passenger vehicles. Designed with a unique S-column structure and a floor plate design, the KT-H100 ensures durability and easy access, even in garages with limited ceiling height.
Its impressive drive-thru clearance of 98.4 inches and a maximum lift height of 70.8 inches make this two-post car lift versatile for a variety of vehicle types. Whether you’re working in a professional shop or a personal garage, the KaTool KT-H100 combines innovative features with exceptional value.
Features and Benefits of the KaTool KT-H100 2 Post Car Lift
- 10,000 lbs Capacity: Perfect for lifting light-duty trucks, SUVs, and passenger vehicles.
- CE Certification: Ensures the lift meets strict safety and quality standards.
- Unique S-Column Design: Enhances strength and stability, providing long-lasting durability.
- Low-Profile Swing Arms: Easily lifts vehicles with minimal ground clearance.
- Front and Rear Arm Reach:
- Front arms extend from 29.5 inches to 46 inches.
- Rear arms extend from 35.4 inches to 58.2 inches.
- Wide Drive-Thru Clearance: Offers 98.4 inches of space for larger vehicles.
- Maximum Lifting Height: Reaches up to 70.8 inches for ample workspace underneath the vehicle.
- Floor Plate Design: Protects synchronization cables and hydraulic lines, reducing wear and tear.
- Manual Safety Release: Accessible from both sides for added convenience.
- Rubber Door Guards: Prevents vehicle door damage during operation.
- Screw-On Pad and Adapter Sets: Includes additional height adapters (+100 mm) for versatile lifting.
- Powder-Coated Finish: Durable red and yellow finish resists corrosion and wear, maintaining a professional appearance.
Specifications of the KaTool KT-H100 2 Post Car Lift
- Lifting Capacity: 10,000 lbs
- Maximum Lift Height: 70.8 inches
- Overall Height: 110.9 inches
- Overall Width: 140.4 inches
- Drive-Thru Clearance: 98.4 inches
- Front Arm Reach: 29.5 inches to 46 inches
- Rear Arm Reach: 35.4 inches to 58.2 inches
- Minimum Pad Height: 3.9 inches
- Power Requirements: 220V AC / 60Hz / Single Phase / 2.2 kW
- Concrete Requirements: Minimum 5.9-inch thickness with 3,000 PSI strength
Why Choose the KaTool KT-H100 2 Post Car Lift?
The KaTool KT-H100 2 Post Car Lift offers premium features typically found in more expensive models. Its innovative S-column design enhances structural integrity, while the floor plate configuration ensures cables and hydraulic lines remain protected. Whether you need a reliable lift for a professional shop or a personal garage, the KT-H100 delivers exceptional value and performance.
Installation Requirements for the KaTool KT-H100 2 Post Car Lift
- Concrete Base: Use a reinforced slab with a minimum thickness of 5.9 inches and a strength of 3,000 PSI.
- Electrical Connection: Requires a 220V single-phase power source with a capacity of 2.2 kW.
- Qualified Installation: Professional installation is recommended to ensure safety and compliance with specifications.
Warranty
- 12-Month Warranty: Covers all parts, ensuring peace of mind.
Frequently Asked Questions
Q: What vehicles can the KaTool KT-H100 2 Post Car Lift handle?
A: This lift supports light-duty trucks, SUVs, and passenger cars with a maximum capacity of 10,000 lbs.
Q: Is this lift suitable for garages with low ceilings?
A: Yes, with an overall height of just 110.9 inches, the KT-H100 fits perfectly in garages with limited ceiling space.
Q: What are the concrete requirements for installation?
A: A concrete slab with a minimum thickness of 5.9 inches and a strength of 3,000 PSI is required.
Q: What safety features does this lift include?
A: The KT-H100 features CE certification, a manual safety release, rubber door guards, and a floor plate design for cable and hydraulic line protection.
Q: Does this lift come with a warranty?
A: Yes, the KaTool KT-H100 includes a 12-month warranty covering all parts.
Why Shop with Shop Tools Outlet?
At Shop Tools Outlet, we are proud to offer high-quality products like the KaTool KT-H100 2 Post Car Lift. With competitive pricing, fast shipping, and excellent customer service, we make it easy to find the tools you need to enhance your workspace.
Be sure to follow us on Facebook , Youtube, Instagram, Twitter, and LinkedIn for all our Social Media Updates!
You may also like…
-

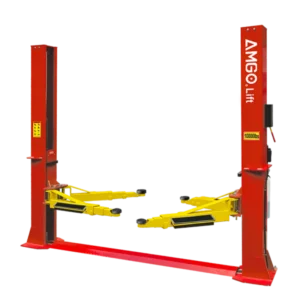

AMGO BP-10
