AMGO BP-10

Description

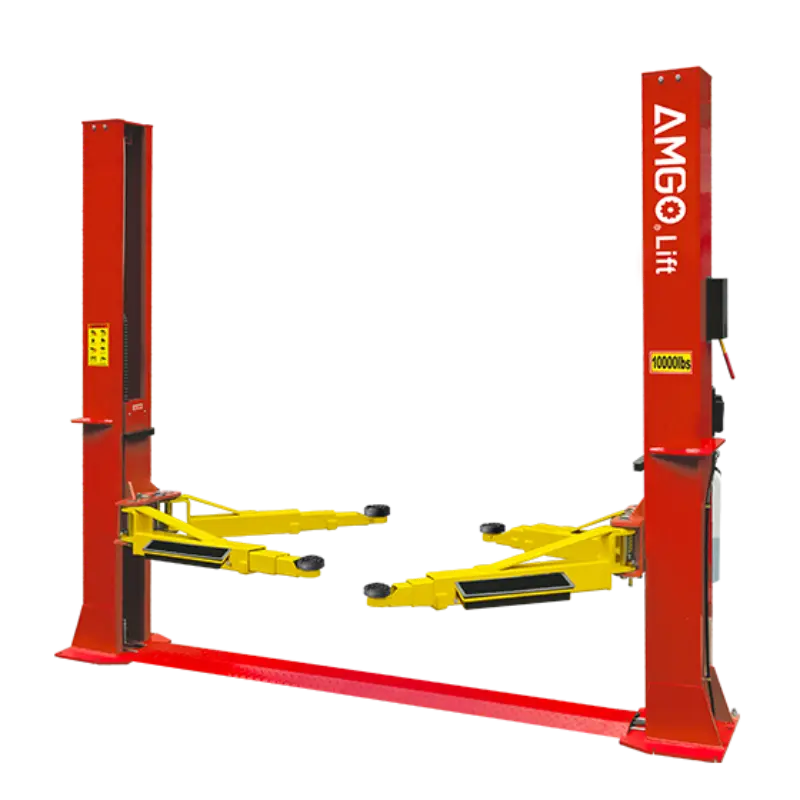

AMGO BP-10 Two Post Floor Plate Car Lift | 10,000 lb Capacity

The AMGO BP-10 two post floor plate car lift delivers commercial-grade lifting power to professional shops and home garages. Rated for 10,000 lbs, this base plate lift handles compact cars, sedans, SUVs, and light trucks with ease. Moreover, its floor plate design routes hydraulic lines beneath the base plates. That keeps the work area clean and organized on every job.

The BP-10 fits in spaces with ceilings as low as 10 feet. Its open-top base plate design removes overhead obstructions entirely, so technicians gain maximum headroom above the vehicle. Additionally, the super-symmetric arm configuration supports both symmetric and asymmetric loading positions. That versatility eliminates the need for two different lifts in the same shop.

Chain-driven hydraulics, aircraft-grade sync cables, and a single-point safety lock release make the BP-10 fast, safe, and simple to operate. This heavy-duty equipment is designed to deliver maximum performance in professional and home garage environments.

FEATURES

• 10,000 lb lifting capacity handles compact cars, sedans, SUVs, and light trucks
• Open-top base plate design eliminates overhead obstructions and maximizes headroom in low-ceiling garages
• Super-symmetric four three-stage telescoping arms support both symmetric and asymmetric vehicle positioning
• Single-point safety lock release unlocks both columns simultaneously for fast, convenient operation
• Dual safety lock system provides an additional layer of protection during lifting
• Automatic arm restraints lock arms securely in position during vehicle loading and service
• Chain-driven hydraulic cylinders deliver smooth, consistent lifting performance
• Aircraft-grade synchronization cable ensures balanced, level lifts on every cycle
• Self-lubricating UHMW polyethylene sliders and bronze bushings reduce friction for quiet, long-lasting operation
• Two adjustable column width settings accommodate a wide range of vehicle sizes
• Detachable foot guard and tool tray keep the work area organized and clutter-free
• Industry-leading warranty: 5 years on structure, 3 years on hydraulics, 2 years on electrical

SPECIFICATIONS

• Lifting Capacity: 10,000 lbs
• Vehicle Lift Range: 76 1/8″ – 85 3/8″
• Overall Installation Height: 111 7/8″ (fits ceilings under 10′)
• Drive-Thru Clearance: Approximately 100 3/4″
• Overall Width: 139 1/8″
• Motor: 2 HP, 220V
• Lifting Time: Approximately 62 seconds
• Arm Configuration: Four three-stage telescoping super-symmetric arms
• Concrete Requirements: Minimum 5″ thickness, 3,500 PSI minimum, cured at least 30 days, level and crack-free
• Approximate Shipping Weight: 1,900 lbs
• Warranty: 5 years structure / 3 years hydraulics / 2 years electrical

INSTALLATION:

The BP-10 requires solid concrete at least 5 inches thick, 3,500 PSI minimum, cured 30 days. The floor must be level and crack-free — never install on asphalt. Anchor bolt placement is critical, so always follow the installation manual carefully. Plan for a minimum 10-foot ceiling. The optional Base Extension Kit bolts to the outside edge of the base plates for added reach on taller vehicles.

OPTIONS AVAILABLE

• Base Extension Kit (bolts to outside edge of base plates for additional reach)
• Light Truck and SUV Saddle Adapter – P/N 1020802
• Drip Trays
• Rolling Jacks
• Jack Trays
• Caster Kits

Frequently Asked Questions

Q: Will the AMGO BP-10 fit in my garage with a low ceiling?

A: Yes. The BP-10 sits under 112 inches tall overall. That makes it one of the top choices for shops and garages with ceilings as low as 10 feet. Its open-top base plate design also removes the overhead beam found on standard two-post lifts. As a result, technicians gain more usable headroom on every job.

Q: Can the BP-10 lift full-size trucks and large SUVs?

A: Absolutely. The BP-10 carries a 10,000 lb rating. It also features four three-stage telescoping arms with two adjustable column width settings. Together, these features handle compact cars, sedans, SUVs, and light trucks with ease. Moreover, the super-symmetric arm design supports both symmetric and asymmetric vehicle positioning.

Installation & Technical Requirements

Q: What are the concrete requirements for installing the BP-10?

A: The BP-10 needs concrete at least 5 inches thick with a minimum strength of 3,500 PSI. Furthermore, the concrete must cure for at least 30 days before installation. The floor must also be level and free of cracks. Never install on asphalt or any surface other than concrete.

Q: What electrical supply does the BP-10 require?

A: The BP-10 runs on a 2 HP, 220V power supply. We strongly recommend a dedicated circuit with properly sized wiring. Additionally, consult a licensed electrician before installation to confirm your shop has the right electrical service.

Q: What warranty does the AMGO BP-10 come with?

A: The AMGO BP-10 carries one of the strongest warranties in its class. Coverage includes 5 years on structural components, 3 years on hydraulic parts, and 2 years on electrical parts. Moreover, warranty coverage applies to all 48 contiguous United States.

Q: What is the difference between a base plate lift and a standard overhead two-post lift?

A: A base plate lift routes its hydraulic cylinder beneath the floor plate rather than through a top beam. This removes the overhead beam entirely. Therefore, the overall installation height drops and available headroom increases above the vehicle. In contrast, a standard overhead two-post lift uses a top beam connecting both columns. That beam adds height and reduces ceiling clearance.

WHY CHOOSE AMGO?

AMGO Hydraulic Corporation builds every lift to a high quality standard using superior materials. The BP-10 uses self-lubricating UHMW polyethylene sliders, bronze bushings, and NOK seals. These components extend service life and reduce maintenance needs. Furthermore, AMGO manufactures its lifts in Manning, South Carolina. That gives customers and dealers direct access to parts and technical support.

The BP-10 delivers professional-grade performance and a class-leading warranty. It holds up in busy commercial shops and dedicated home garages alike. When you invest in AMGO, you get a lift built to perform reliably for years. Additionally, the industry-best warranty backs every purchase with real coverage and long-term peace of mind.
