Omega 23227

Description

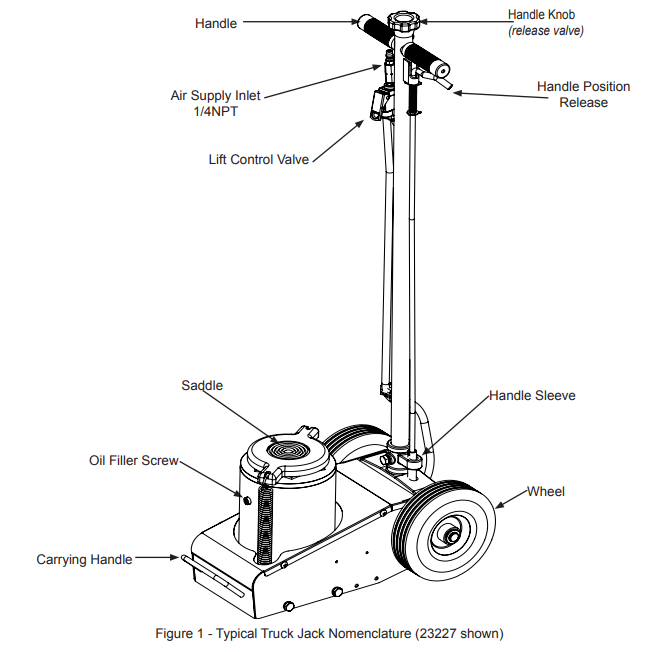

The Omega 23227 Truck Axle Jack is built tough and designed to handle big jobs for big equipment.  With up to 35 tons of lifting capacity this axle jack has three handle angles.

This makes it easy to store the jack without taking up significant shop space. You can easily roll the jack to the vehicle. At zero degrees it allows you to position the jack where you need it.

The heat treated extension screw and patented built in by-pass ensure reliability. This system prevents damage to the jack when you’re not exactly sure how much weight you’re lifting.

Features:

• A choice of three handle angles:
  – 90º for space saving storage
  – 45º for easy carrying movement
  – 0º for access to lifting point
• Heat-treated extension screw allows low pick-up height adjustment and maximum lift height
• U.S. Patented built-in by-pass device protects hydraulic system from over pumping damage
• Large steel rims with rubber wheels for easy positioning and smooth motion
• Sturdy one piece handle assembly is standard on all Omega Truck Jacks
• User friendly, self-returning spring minimizes operators effort, greatly reducing fatigue
• In-line air filter traps contaminates and protects air motor for longer life
• Chrome plated rams
• Air turbo motor makes lifting simple and safe.
• Dual stage lifting operation

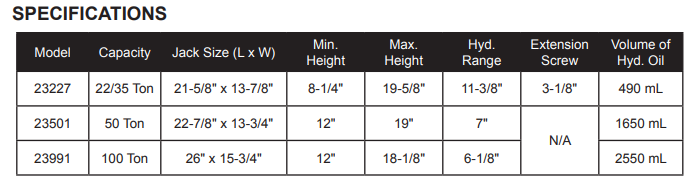

Specifications:

• 22_35 Ton Capacity
• Minimum Height: 8 1/4″″
• Maximum Height: 19 5/8″
• Lifting Range: 11 3/8 with a 3 1/8″ Extension Screw

Why Buy Omega Products?

Omega is a professional offshore line of lifting products and shop equipment.  Omega’s products are designed with the features and rugged durability required by professionals and built in high tech overseas factories.  Exceptional engineering with the added security of ANSI certification, means Omega products represent the best values available in the professional market.  Omega products like this Omega 33227 Truck Axle Jack, offer a one year manufacturer’s warranty.
