Tuxedo TP9KAC-TUX

Description

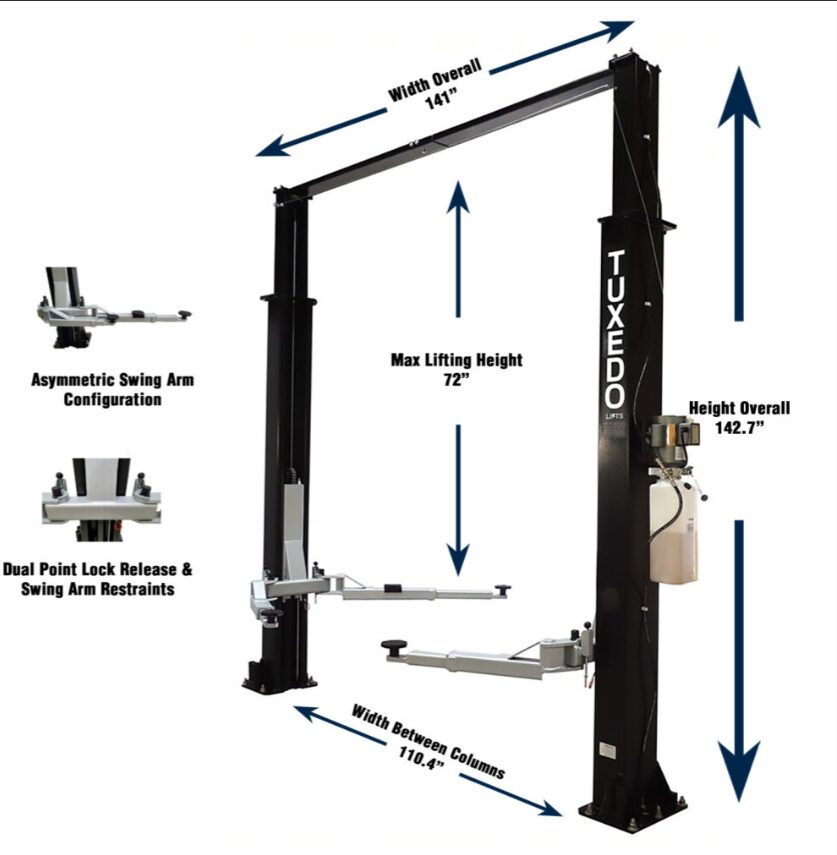

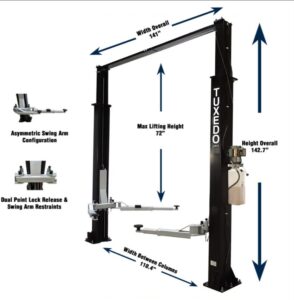

Tuxedo TP9KAC-TUX Two-Post Car Lift: Clear Floor Design and 9,000 lbs Capacity

The Tuxedo TP9KAC-TUX Two-Post Lift is a versatile and reliable choice for hobbyists, collectors, and light-duty shops. With its clear floor design, it provides unobstructed workspace, making it perfect for a wide range of maintenance and repair tasks.

Equipped with asymmetrical swing arms, low-profile lifting pads, and stackable height adapters, this lift ensures ease of use and accommodates various vehicles, including passenger cars, light-duty trucks, and many SUVs. The two-piece column construction, combined with chain-driven cylinders and heavy-duty welded carriages, delivers dependable performance and durability.

The TP9KAC-TUX pairs robust functionality with an affordable price, making it an ideal entry-level option for vehicle enthusiasts. Combined with Shop Tools Outlet’s outstanding customer service, this lift stands out as a top choice for your next garage upgrade.

Features and Benefits

• 9,000 lbs Capacity: Handles a wide range of vehicles, from passenger cars to light-duty trucks and SUVs.
• Asymmetric Swing Arms: Allows for easier access to vehicle interiors and doors.
• Low-Profile Design: Includes 4″ swing arm lifting pads, ideal for low-clearance vehicles.
• Adjustable Height Adapters: Features 1 5/16″ and 5″ stackable adapters for added versatility.
• Safety Features:
  • Dual-point lock release ensures stability during operation.
  • Overhead mechanical shutoff prevents damage by stopping the vehicle at maximum height.
  • Automatic arm restraints secure lift arms in place for safety.
• Chain-Driven Cylinders: Provides smooth and reliable lifting action.
• Durable Finish: Black powder-coated finish resists corrosion and wear.
• Warranty Protection:
  • Structural Warranty: 5 years
  • Parts Warranty: 1 year

Specifications

• Overall Design: Clear floor for unobstructed workspace
• Lifting Capacity: 9,000 lbs
• Minimum Pad Height: 4 inches
• Power Requirements: 220V, 20 Amp, Single Phase
• Concrete Requirements: Minimum 4.25″ depth at 3,000 psi
• Overhead Clearance: Includes an overhead mechanical shutoff

Installation Requirements

For proper installation and optimal performance, ensure the following:

• Concrete Base: A minimum of 4.25″ depth and 3,000 psi strength is required.
• Electrical Power: A 220V-20Amp single-phase connection is necessary.
• Refer to the installation PDF attachment on the product page for detailed guidelines.

Frequently Asked Questions

Q: What vehicles can this lift handle?
A: It supports passenger cars, light-duty trucks, and many SUVs with a maximum capacity of 9,000 lbs.

Q: How does the clear floor design improve usability?
A: The clear floor design eliminates obstructions, providing a more efficient workspace for under-vehicle tasks.

Q: Does the lift require professional installation?
A: While it is possible to self-install with the included instructions, professional installation is recommended for safety and accuracy.

Q: What maintenance does this lift require?
A: Regularly inspect the chain, locks, and cables, and lubricate moving parts as needed to maintain optimal performance.

Q: Does the lift come with a warranty?
A: Yes, the TP9KAC-TUX includes a 5-year structural warranty and a 1-year parts warranty.
